Fusion Marine Boat Stereo Ms-Ra70
Fusion Marine Boat Stereo Ms-Ra70
Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®.
Fusion Marine Stereo Ms-RA70 with BT/USB/iPhone/Android/AM/FM and Fusion Link App Control
Key Features:
- Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space
- Optically bonded monochrome LCD improves screen visibility
- Built-in Class-AB amplifier delivers efficiency with reduced distortion
- Multi-Zone™ Technology gives you control of two separate audio zones

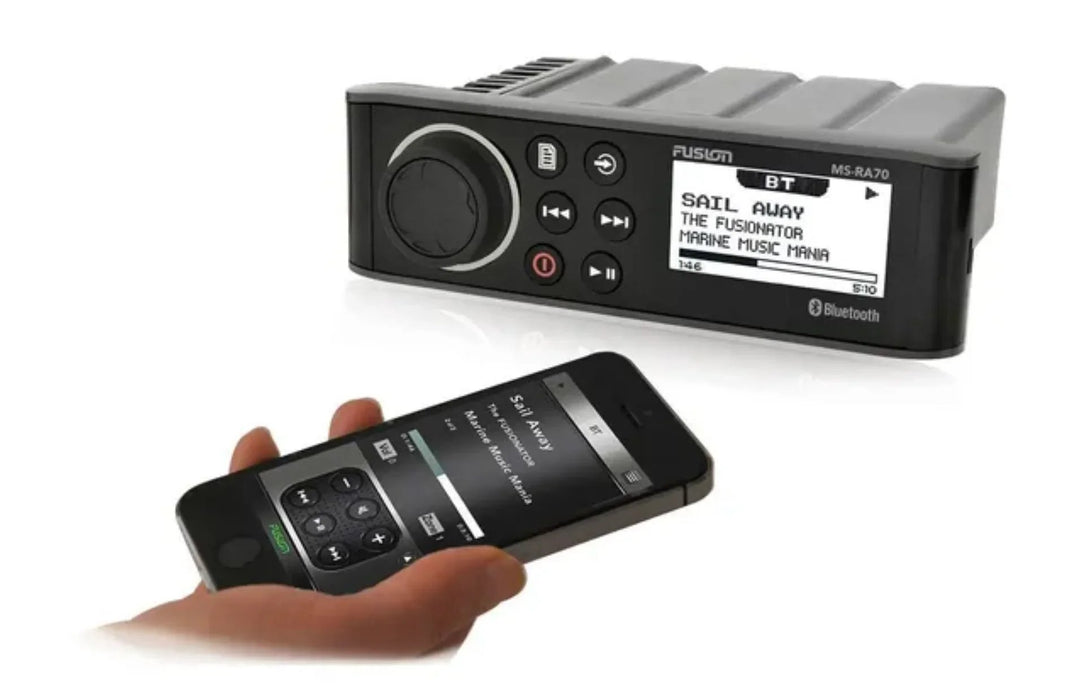

- Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch
General:
Physical dimensions (HxWxD) 60 x 188 x 123.5 mm
Weight 556 g
Water rating IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range 10 metres
ANT wireless range 3 metres
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance 150 mm
Stereo features
Display 128 x 64 optically bonded monochrome LCD
Built-in amplifier Class-AB
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control MS-RA70: Yes (smartphone and Garmin watch)
MS-RA70N: Yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
DAB+ ready MS-RA70 and MS-RA70N only; (requires DAB100A antenna module)
NRX remote compatibility MS-RA70N only
Multi-language interface Dutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout Yes
Software updates USB
Warranty 1 year
Sources
Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA
MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only)
Connectivity
Auxiliary input One RCA input (AUX)
NMEA 2000 MS-RA70N : 1 port
USB 2.0 One USB 2.0 port
