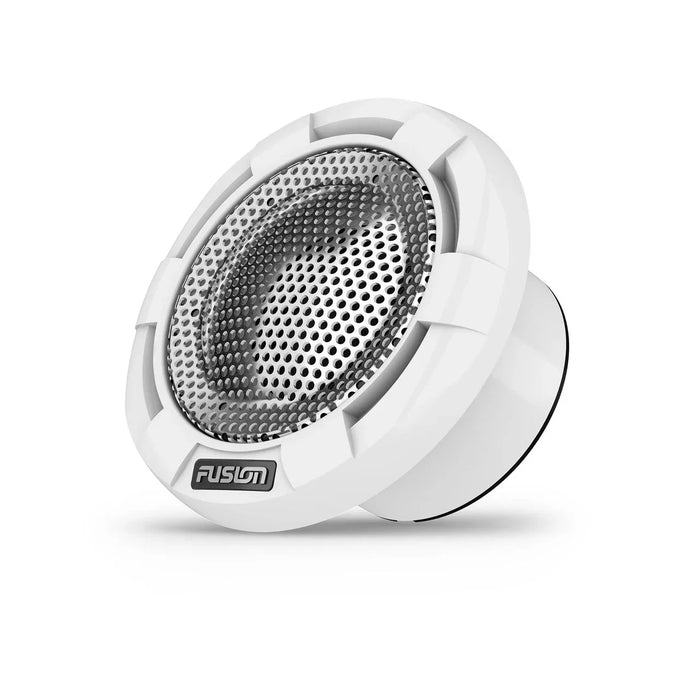

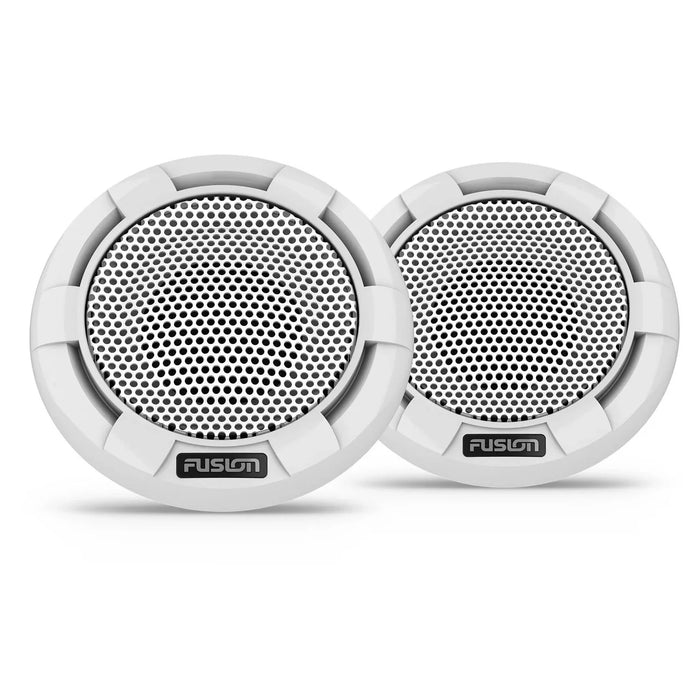

Fusion Sg-Tw101Spw Series 3I Component Tweeter
Enhance your listening experience while you’re on the move with these marinized component tweeters. Designed to be dash-mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating and True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.
TECHNICAL SPECIFICATIONS
Features
General
Physical dimensions (diameter x depth): 2.91" x 1.64" (74 x 41.6 mm)
Weight: 4.2 oz (0.12 kg)
Water and dust rating: IP65
Tweeter size: 1"
Peak power (watt): 330 W
RMS power (watt): 60 W
Sensitivity (1 W / 1 m): 91 dB
Frequency response: 3 kHz - 20 kHz
Nominal impedance: 4 ohms
Recommended amplifier power (RMS): 25 - 140 W/Ch
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: 1"
Material: Aluminum dome

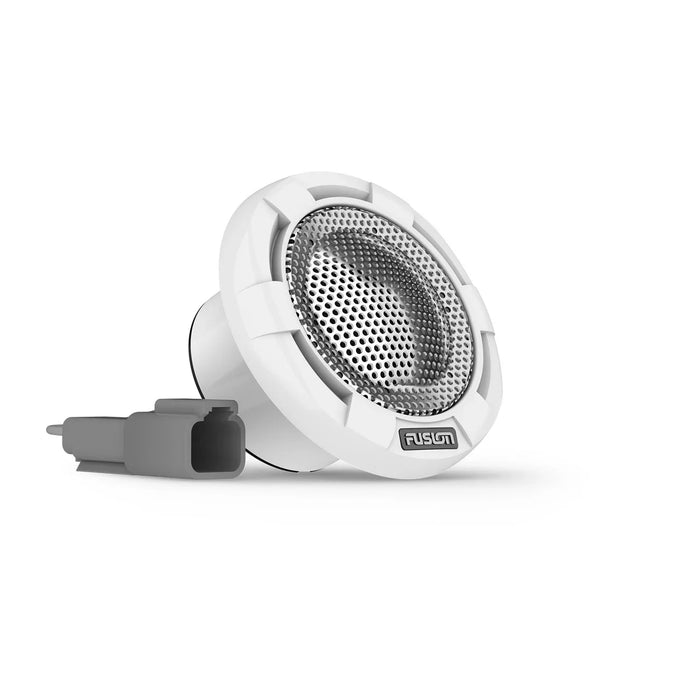

Tweeter connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
Compass-safe distance: 43.3" (110 cm)
Warranty: 3 years
Mounting Dimensions
Mounting diameter clearance: 2.01" (51 mm)
Mounting depth clearance: 1.22" (31 mm)
