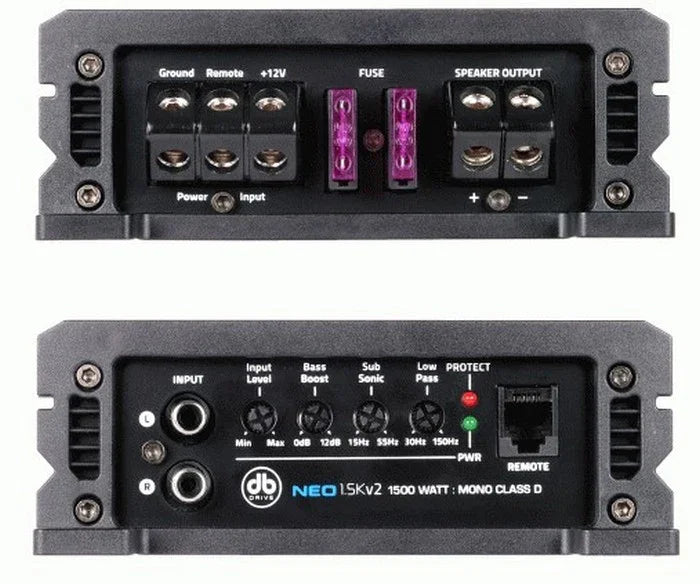

Db Drive Amp Amplifier Neov2 Mono - 1 X 750W Rms @ 1 Ohm / 1 X 350W Rms @ 2 Ohm
Db Drive Amp Amplifier Neov2 Mono - 1 X 750W Rms @ 1 Ohm / 1 X 350W Rms @ 2 Ohm
The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.
1 Channel Full Range Class D Technology
2Ω Mono load Capability
Amphibious grade conformal coating on PCB
Audiophile Grade RCA connectors
Variable 12dB High/Low-Pass Crossover Filters
Double Sided Circuit tablet
Compatible with any 4/2Ω Subwoofer
General Specifications:
Rated Power @ 14.4 Volts
Dynamic Power Handling
1 x 350 Watts @ 2Ω
1 x 750 Watts @ 1Ω
PARAMETERS:
THD (100Hz @ 1Ω)
0.04%
Bandwidth (-3 dB)
18Hz ~ 22KHz
Damping Factor (1KHz @ 4Ω)
126
S/N ratio (as weighted @ 1 Volt)
99db
Input Sensitivity
0.20V ~ 9.0V RMS
Minimum Load Impedance
1Ω
Input
Pre in RCA
Mono Low Pass filter slope
12dB
Low Pass filter range
30Hz ~ 150Hz
Sub ? Sonic Filter slope
12dB
Sub ? Sonic Filter Range
15Hz ~ 55Hz
Dimensions:
Length: 7.6″ / 195 mm
Width: 5.3″ / 135 mm
Height: 1.88″ / 48 mm
